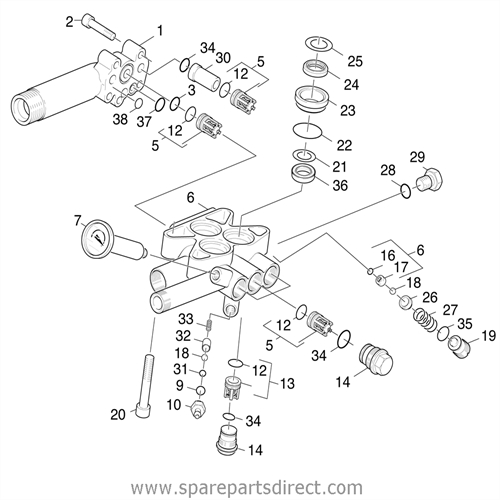

find the number of part or parts you require from drawing above then scroll down the page and add that item or items you require to your basket
item number 15.060-599.0 Valve housing
item number 27.306-044.0 Cylinder head screw M8x35 -8.8-A2E ISO4
item number 36.362-547.0 O-Ring seal 20,0x1,5-NBR 70
item number 52.884-512.0 Valve Pack of 3
item number 64.550-329.0 Cylinder head complete
item number 76.421-349.3 Pressure gauge
item number 96.362-113.0 O-Ring seal 6,0 x 2,0 NBR 70
item number 105.443-370.0 Nipple
item number 126.362-381.0 O-Ring seal 13x2 - NBR 70
item number 134.580-323.0 Valve complete
item number 145.583-146.3 Valve screw
item number 166.362-703.0 O-Ring seal 6,0x1,5-NBR 70
item number 175.581-218.0 Valve seat
item number 187.401-908.0 Sphere 7 G300 -1.4301 DIN 5401
item number 195.583-089.0 Valve screw
item number 207.306-125.0 Cylinder head screw M10x70-8.8-A3E ISO4
item number 215.115-431.0 Washer
item number 226.362-406.0 O-Ring seal 33,05X 1,78-NBR 70
item number 235.112-340.3 Bush
item number 246.365-332.0 Compact seal 18x28x5,8
item number 255.115-432.0 Washer
Item number 265.582-075.0 Valve disc
item number 275.332-203.0 Helical spring
item number 286.362-101.0 O-Ring seal 8 X 2
item number 295.411-070.0 Screw plug
item number 305.110-608.0 Sleeve
item number 316.363-597.0 O-Ring seal 5,28x 1,78
item number 325.110-522.0 Sleeve
item number 335.332-258.0 Helical spring
item number 346.362-481.0 O-Ring seal 14,0 x 2,0 NBR 80
item number 356.362-169.0 O-Ring seal 12,0 X 2,0
item number 366.365-333.0 Grooved ring 18X26X5,4
item number 376.362-384.0 O-Ring seal 9x1,5 - NBR 70
item number 386.362-658.0 O-Ring seal 7 X 1,5-NBR 90
item number 1002.883-817.0 Pump Kit
